smart Panel A6 详细信息
更新时间:2014/5/5 12:35:08 点击:588
产品简介
• ATOM processor, dual core 1,6 GHz • 2 GByte memory (RAM) • 4 / 16 Gbyte flash • 128 kByte retain memory
详细资料
· Dual Core Atom 1,6 GHz
· Linux and Windows simultaneously
· Ultracompact machine control
· SPS, Motion Control, visualization and PC-Software
· All-in-one Engineering-Tool AIPEX PRO
· CODESYS with powerful technology functions

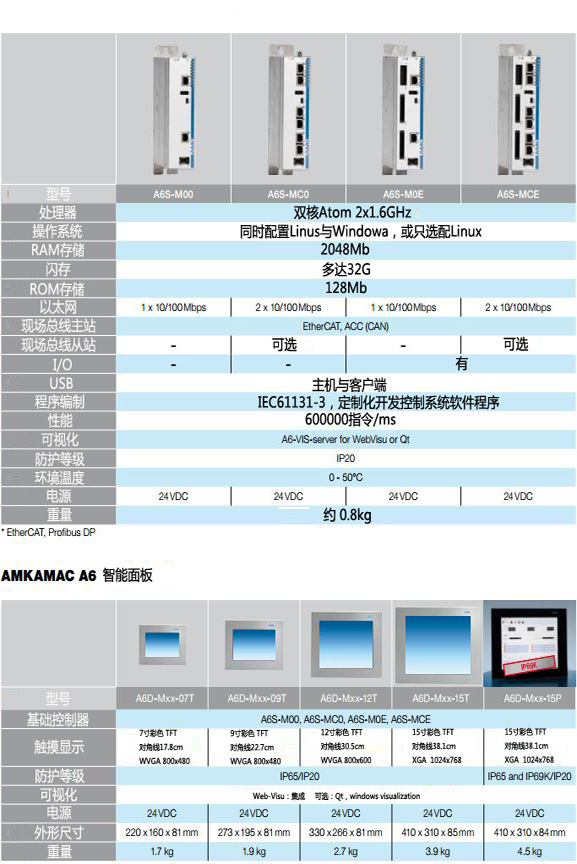

The AMKAMAC smartPanels are an optimum solution for controlling machines and plants. The machine control systems are available as a structural unit with a 7-, 9-, 10-, 12-, or 15-inch touch display and are thus extremely compact. The EtherCAT real-time fieldbus is used, making the number of nodes within the bus practically unlimited. The synchronized cross communication with other controllers in the system makes them even more flexible to use.
The Ethernet and USB interfaces enable easy access, and the individual PLC programs can be easily loaded. Another feature of AMKAMAC controllers is remote access and diagnostics of all nodes on the fieldbus. Process data can be read out and managed via the OPC server.
